Project Description

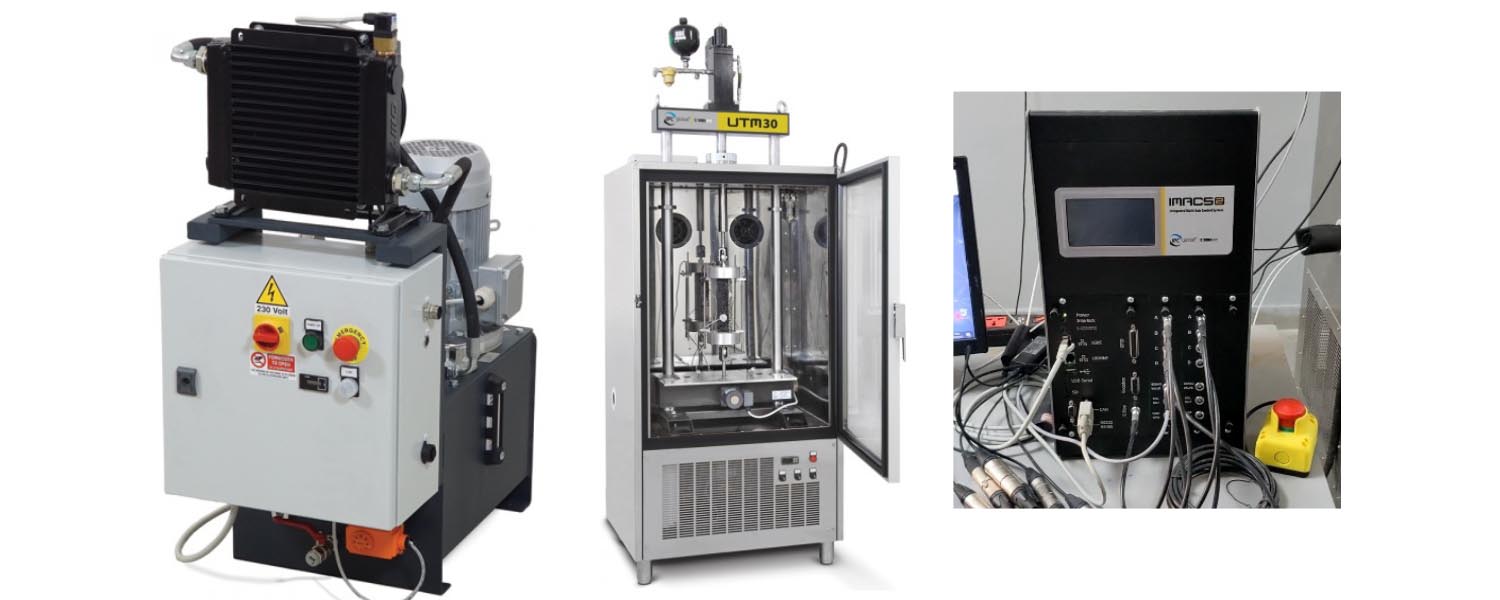

Specification
| Load Capacity | +/- 30kN Static, +/- 30kN Dynamic* |
| Frequency | Up to 70Hz |
| Load Cell | Low profile/Pancake type, +/-30kN capacity |
| Actuator Type | Double acting high precision labyrinth bearing or tie-rod actuator |
| Stroke | +/-25mm |
| In-built Displacement Transducer | 50mm |
| Adjustable cross-head | Motorized |
| Crosshead Clamping | Hydraulic |
| Vertical Space | 800mm |
| Space Between Columns | 450mm |
| Size (HxWxD) | 1,800x660x560mm |
| Weight | 285kg (approx.) |

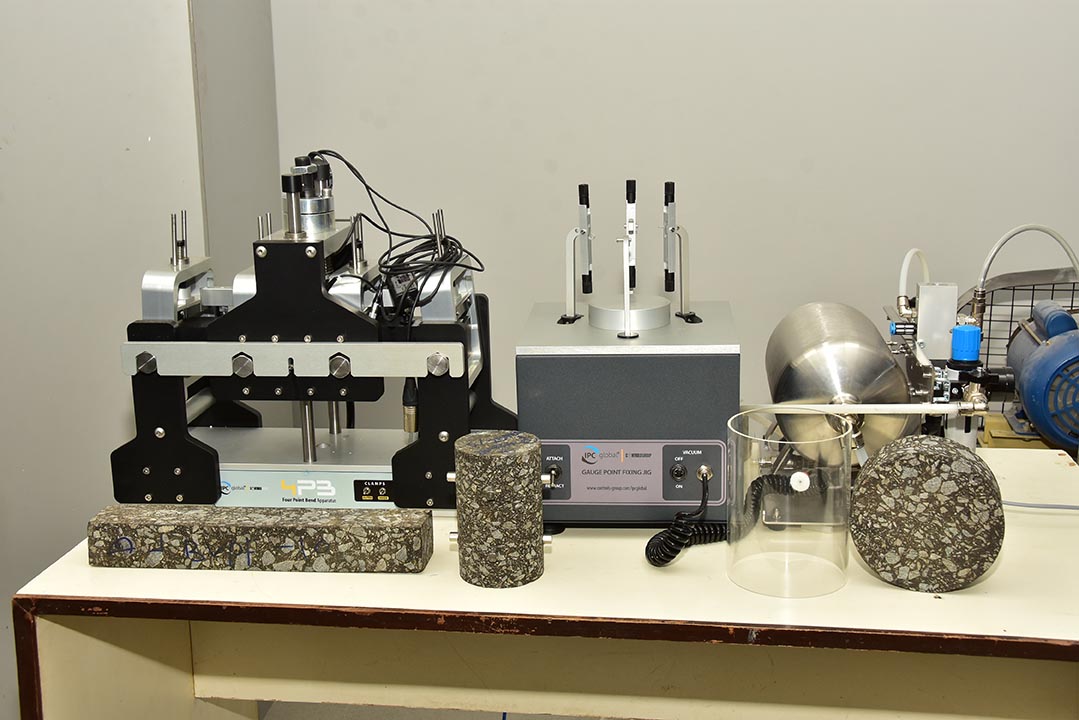

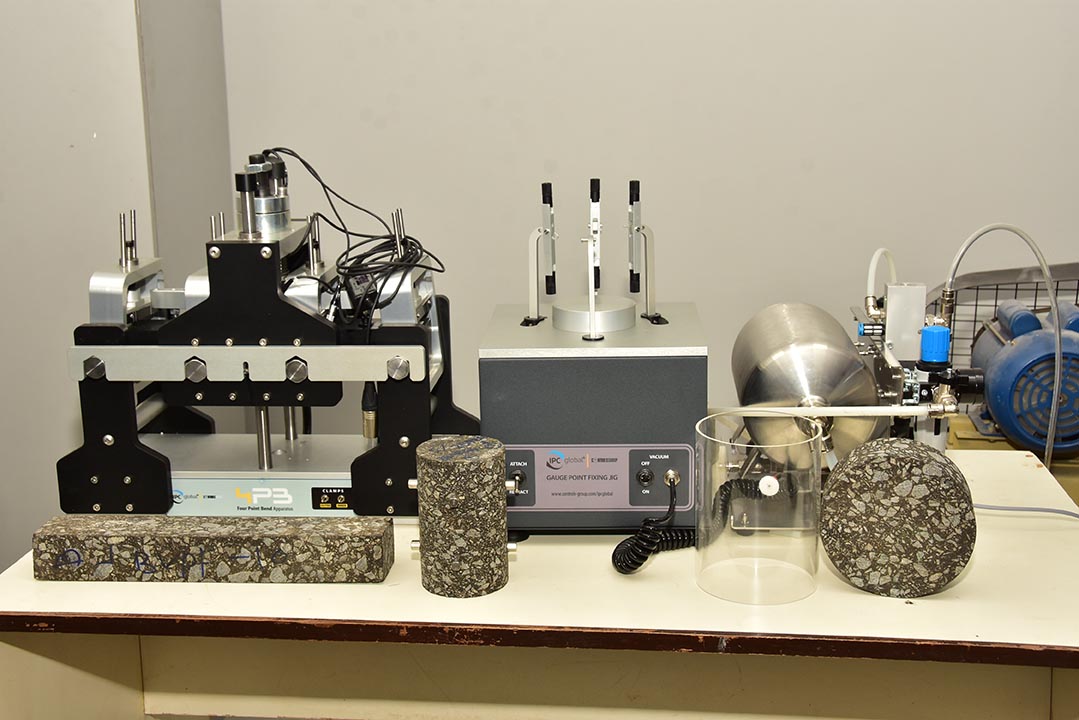

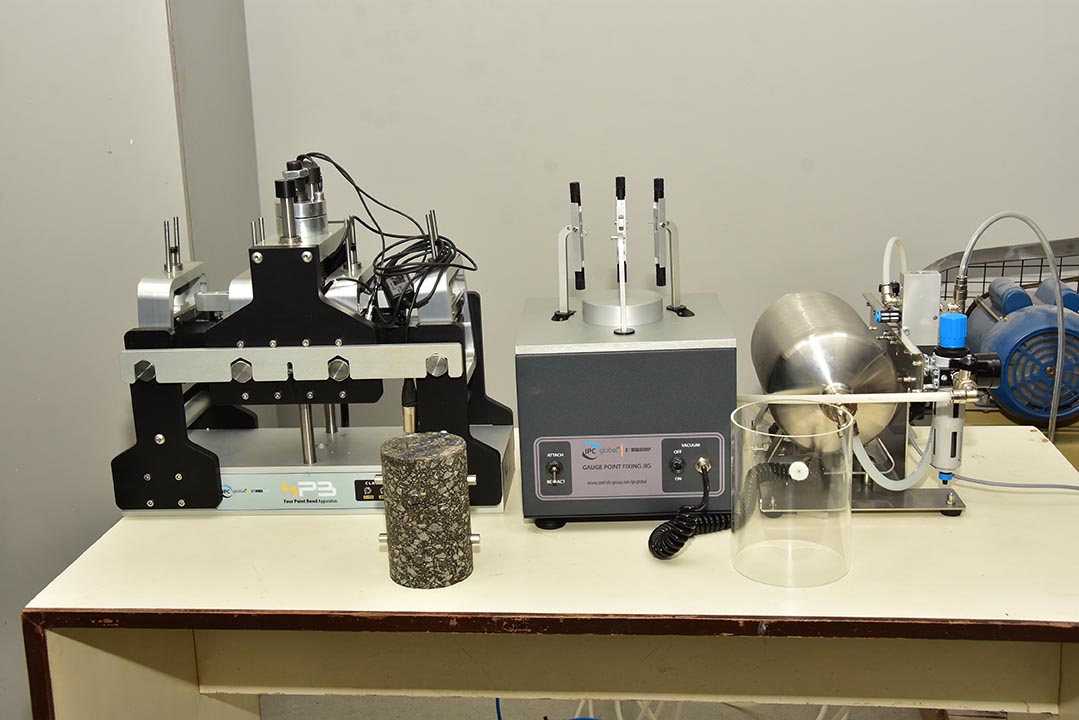

Accessories:
- Environmental chamber
- Accessories for Resilient Modulus test as per ASTM D4123
- Accessories for Resilient Modulus test as per ASTM D7369/AASHTO 322.
- Accessories for Resilient Modulus test as per EN 12697-24E
- Accessories for Stiffness Test as per EN 12697-26C.
- Accessories for Stiffness Test as per EN 12697-26B
- Accessories for Dynamic Modulus, Flow Number, and Flow Time: Asphalt Mixture Performance Tester (AMPT) as per AASHTO 378/TP 79.
- Accessories for Permanent deformation, Creep Strain, Creep Modulus, as per EN 12697-25B
- Accessories for fatigue study as per AASHTO 321
- Accessories for fatigue study as per ASTM D7460.
- Accessories for fatigue study as per EN 12697-24D
- General Purpose 4-B test for stabilized soil and aggregate
- Desktop with monitor
Applications:
The servo hydraulic fatigue testing equipment can be used for determination of dynamic modulus, Resilient Modulus, Stiffness, permanent deformation, dynamic creep and fatigue life of Bituminous Mixture and stabilized soil & Aggregate samples. It has the provision of static and cyclic tests with Sine, square, triangle, ramp, hold, profile, other necessary waveforms and custom waveform activities. A list of tests which can be conducted based on specific AASHTO/ASTM/EN standards are given below.
- Determination of Resilient modulus of Bituminous Mixtures by conducting Indirect Tension Test as per ASTM D4123
- Determination of Resilient modulus of Bituminous Mixtures by conducting Indirect Tension Test as per ASTM D7369/AASHTO 322.
- Determination of Resilient Modulus and Fracture Life of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-24E
- Determination of Stiffness of Hot Mix Asphalt by conducting Indirect Tension Test as per EN 12697-26C.
- Determination of Stiffness of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-26B
- Determining the Dynamic Modulus, Flow Number, and Flow Time for Asphalt Mixtures Using the Asphalt Mixture Performance Tester (AMPT) as per AASHTO 378/TP 79.
- Determination of Permanent deformation, Creep Strain, Creep Modulus, by Conducting Cyclic Compression Test as per EN 12697-25B
- Determining the Fatigue Life of Compacted Hot Mix Asphalt (HMA) subjected to Repeated Flexural bending as per AASHTO 321
- Determining Fatigue Failure of Compacted Asphalt Concrete Subjected to Repeated Flexural Bending as per ASTM D7460.
- Determination of Fatigue Life of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-24D
- Determining Flexural Strength and Fatigue Life of concrete or cement stabilized soil by conducting Four Point Flexure Test on 100mmx100mmx450mm and 75mmx75mmx300mm size sample
CHARGES
| Name of the Test | User Type | |||
| KIIT Users | Academic Institutions | Research Laboratory | Industry | |
| Resilient modulus of Bituminous Mixtures by conducting Indirect Tension Test as per ASTM D4123 | 100 | 500 | 1000 | 2500 |
| Resilient Modulus and Fracture Life of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-24E | 100 | 500 | 1000 | 2500 |
| Stiffness of Hot Mix Asphalt by conducting Indirect Tension Test as per EN 12697-26C. | 100 | 500 | 1000 | 2500 |
| Stiffness of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-26B | 100 | 500 | 1000 | 2500 |
| Dynamic Modulus, Flow Number, and Flow Time for Asphalt Mixtures Using the Asphalt Mixture Performance Tester (AMPT) as per AASHTO 378/TP 79. | 100 | 500 | 1000 | 2500 |
| Permanent deformation, Creep Strain, Creep Modulus, by Conducting Cyclic Compression Test as per EN 12697-25B | 100 | 500 | 1000 | 2500 |
| Fatigue Life of Compacted Hot Mix Asphalt (HMA) subjected to Repeated Flexural bending as per AASHTO 321 | 100 | 500 | 1000 | 2500 |
| Fatigue Failure of Compacted Asphalt Concrete Subjected to Repeated Flexural Bending as per ASTM D7460. | 100 | 500 | 1000 | 2500 |
| Fatigue Life of Hot Mix Asphalt by conducting 4-Point Bending Test as per EN 12697-24D | 100 | 500 | 1000 | 2500 |
| Flexural Strength and Fatigue Life of concrete or cement stabilized soil by conducting Four Point Flexure Test on 100mmx100mmx450mm and 75mmx75mmx300mm size sample | 100 | 500 | 1000 | 2500 |
Faculty In-Charge
Name of the In-charge : Dr. Dipti Ranjan Biswal
Designation : Assistant Professor
Contact details : dipti.biswalfce@kiit.ac.in
Name of the In-charge : Dr. Brundaban Beriha
Designation : Assistant Professor
Contact details : brundaban.berihafce@gmail.com
Photo Gallery
